ASCOM telescope focuser with Arduino

Another step has been made to have automated astrophotography setup - the focuser. SharpSky project was successfuly implemented in my second version of Astrohub, however this Astrohub has been made to work with DSLR. When I purchased 'real' CCD camera (Atik 314L+) Astrohub idea needed to be adjusted. I decided to built my own ASCOM controller focuser based on Arduino board. I have choosen Arduino Nano board because of its small size.

In the photo you can see Arduino Nano placed in the PCB. Under the Arduino there are hidden: L293D stepper and buzzer. Sockets at the PCB edge are for stepper motor, rotary encoder and DS1820 temperature sensor. At the same PCB there are two voltage regulators - for USB hub and for stepper motor. The project is available at page - there you will find ASCOM driver installer, Arduino sketch, required libraries for Arduino (Dallas Temperature, 1-Wire, Accel Stepper and others), all source code and quite extensive documentation, so I encourage to build your own focuser if one would like to - it is not rocket science at all :)

ASCOM driver was developed using available ASCOM templates. Implementation was made just to fulfill ASCOM IFocus2 interface, no additional bells and whistles. At the driver setup window you can set all the values required for the focuser to work. Focuser with driver was tested with Maxim DL software ( and it works perfectly ok. Focuser features are:

  • absolute focuser positioning
  • halt command
  • temperature focus point compensation
  • manual focus control using rotary encoder
  • stepper motor PWM duty cycle when motor not moving (prevents motor rotation under heavy focuser loads)
  • driver level backslash compensation (although its advised to use controlling application backslash if available)
  • telescope autofocus capability using 3rd party software like Maxim DL, or FocusMax
All project components were tested in 'lab' conditions and now are ready for field tests as soon as weather will be ready as well.

Wednesday, February 13, 2013

QHY5 cold finger

This night I dreamt about zero cloud forecast for the next 3 nights. Unfortunately it has nothing in common with reality - the weather is as it is and there is no single symptom telling it will improve soon. So I continue preparations for the astrophoto season :)

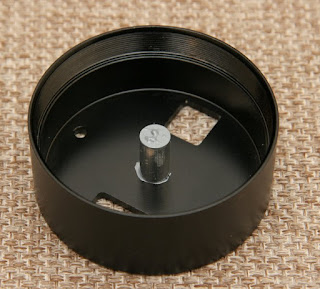

Insprired by this link I decided to add passive cooling to my QHY5 guider camera. The implementation is very straightforward assuming your QHY5 camera has already cut out piece of the board under the CCD chip. Then all you need to do is to place there a piece of aluminum (or copper) that will fill the space between the chip and the camera case. The PCB cut out is 9x10mm large, so you need to choose the proper cold finger size. In my camera the distance between chip and camera case is 15.3mm, so I choose aluminum rod 8mm diameter and 15.3mm length. I drilled a whole at one end for 3mm bolt and fixed the cold finger to camera case. Both cold finger surfaces are covered with thermal grease.

One important thing is that cold finger surfaces need to be flat, so it will contact with case and CCD chip with the whole surface area. And that is all - camera was assembled and I performed a few tests. Three series of dark frames were taken with and without cold finger. Exposure times were 3, 5 and 30 seconds, and each serie lasted for 5 minutes. There was 15 minutes break between each serie to cool down the camera. Ambient temperature was 21C. Here are sample picture crops from the images taken at the end of each serie (click to enlarge):

The images were stretched to the first 20% of the histogram. The cold finger work is clearly visible. In the table below there are a few numbers calculated in Maxim from the camera image 300x300px selected crop.

Exp. time Std dev. HOT Std dev. COLD Hot px val HOT Hot px val COLD
3s 1.18 0.65 38 17
5s 1.89 0.89 62 30
30s 10.5 4.39 204 92

It's quite easy to estimate that noise was decreased by the factor of about 2.1 that corresponds to the chip temperature drop of about 7C (for CCD chips the temperature noise doubles for every 6C temperature increase). Taking into account our investment for this mod the benefit is quite impressive.
The last picture is the graph of single selected hot pixel value growth in exposure series for 5s exposure with ant without cold finger mod. Horizontal axis represents single exposures, so each value means 5 seconds (plus download time).

X axis indicates sample number - in our case it is each 5 second exposure. For non cooled camera we can see that hot pixel value increases during this 5 minutes time, but even at the end of this period it is not yet flat. This growth indicates increase of CCD chip temperature during session until the moment it reaches kind of thermal equilibrium with the environment. For the "cold finger" version we can easily see that hot pixel value is lower, and equilibrium is reached much faster - after one minute (12 samples) the plot is reasonably flat. This is quite important information however, especially for non cooled QHY5 cameras - if you want to take dark frames for calibration do not do this at the session start. Take at least 2-3 minutes of test exposures, then take darks when the camera warms up and reaches equilibrium with ambient.
Cold finger solution seems to work fine and I have high hopes it will improve stability of guiding process, especially facing the fact that hot pixels are the major pain of QHY5 camera. It probably also benefit when using this camera for making planetary exposures.
